Description
Model:

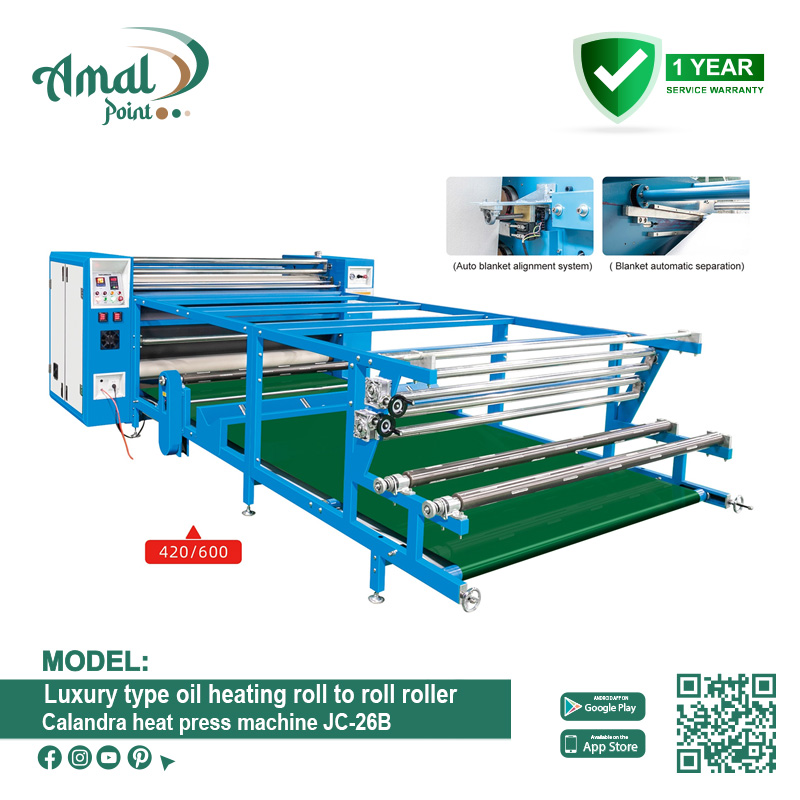

Luxury type oil heating roll to roll roller/ calandra heat press machine JC-26B
Technical characteristics
1) According to the principles of human mechanics, the upper feeding process is adopted, which is suitable for cut pieces
fabric hot stamping and solves the problems of difficult alignment and material receiving. It is safe and reliable, greatly improving production efficiency.
2) Electrical control adopts the most advanced technology, no need for cold machine, the blanket and the cylinder can be safely separated, with power failure protection function.
3) The upper feeding style has added an assembly line receiving rack, which is convenient for placing and collecting clothes, fast and safe.
4) Electronic digital thermostat control, motor frequency digital speed regulation, high accuracy.
5) Drum adopts chrome plating technology, with strong hardness, wear resistance, anti sticking, and good transfer printing effect.
6) use of advanced external fuel tank circulation heating, can preheat in advance to save labor, oil circulation heat conduction, to ensure uniform temperature. Peripheral refueling box, manual closing valve, heat transfer oil is very convenient, high safety performance, explosion-proof unique advantages.
Product parameters:
[Roller diameter: 420/600mm width: 1800~3200mm
can be customized]
Roller Width(MM): 1800, 2000, 2600, 1800, 2000, 2600,
Roller Diameter(MM): 420, 420, 420, 600, 600, 600,
Voltage (V): 380 (Three-phase four-wire)
Power (KW): 25, 28, 37, 45, 51, 67,
Temperature range (°C): 0-260,
Weight (KG): 2030, 2250, 2500, 2500, 3000, 3500,
Package size LxWxH(CM) ( Host) : 284x134x160, 304x134x160,
360x156x172, 280x150x170, 304x154x170, 410x172x200,
(Table 3M) 224x67x125, 224x67x125, 224x60x125, 224x67x135, 224x67x135, 260x69x130,
Tips: Product parameters and pictures are for reference only, please refer to the actual!
