Description

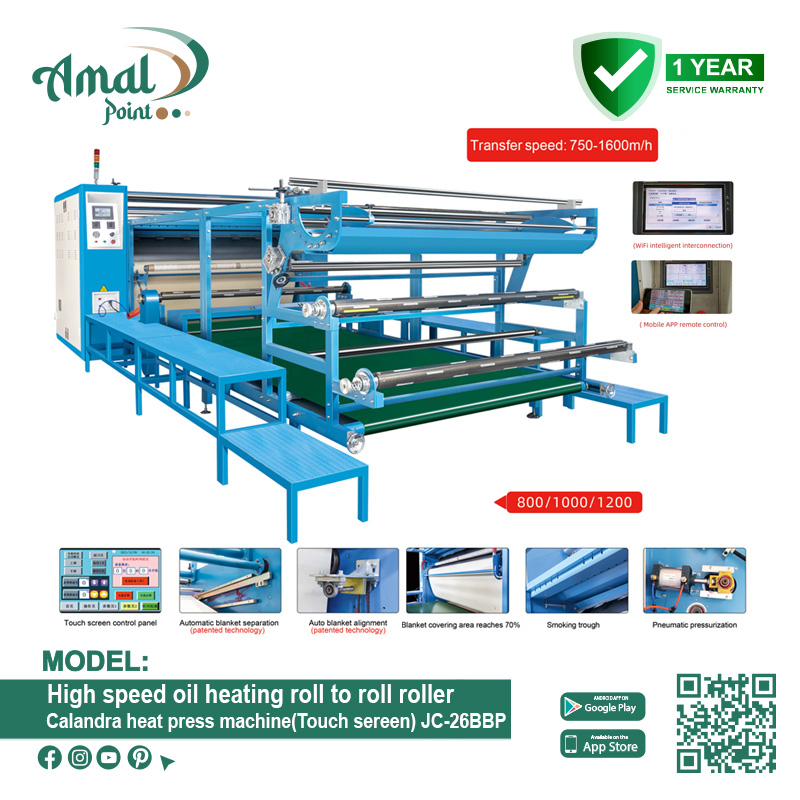

Model: High speed oil heating roll to roll roller / Calandra heat press machine(Touch sereen) JC-26BBP
Technical characteristics:
High-end Multifunction a Intelligent Touch Screen
1) Intelligent: fault text display, alarm;
2) Automatic shutdown: the machine automatically shut down when the temperature reaches 90 degrees, to prevent damage to the blanket;
3) Make an appointment to start up: preset time point in advance, automatic start up in advance, heating up, save labor;
4) The conveyor belt independent frequency conversion speed control: according to the different requirements of the cloth automatic speed control, prevent the fabric (material)deformation, elongate;
5) Mutrifunctional watt-houimeter: can display the cumulative power consumption, display current, voltage is normal; It can display the number of meters of cloth (material) produced by the machine and the electricity consumption per meter of cloth;
Blanket Related Design:
1) Blanket automatic deviation correction (our patented technology): intelligent blanket to prevent deviation, Variants, damage;
2) Blanket automatic advance and retreat (our patented technology): save labor and ensure uniform tension of the blanket, protect the blanket, improve the service life of the blanket;
3) Automatic detachment of blanket: without cooling, shutdown or failure, the blanket will be automatically detached, saving manpower (traditional shutdown requires manual shaking to separate the blanket), with a 3-5cm safe distance to prevent blanket burns;
Energy Saving
1) Blanket covering roller covers 70% area: long temperature area, fast speed, low heat loss of roller and 20% electricity saving;
2) Power frequency conversion: Temperature thyristor control, 10% power saving compared with the samemodel[800 diameter compared with ordinary high-speed machine(solid state) test, 10 hours power saving32 degrees,about10%]; 3.Smoking function: the first time to smoke away, prevent pollution cloth.
Product parameters:
[Roller diameter: 800/1000/1200mm width: 1800~3200mm
can be customized]
Roller Width(MM): 1800, 2000, 1900, 2000, 2000,
Roller Diameter(MM): 800, 800, 1000, 1000, 1200,
Voltage (V): 380 (Three-phase four-wire)
Power (KW): 61, 68, 85, 89, 115,
Temperature range (°C): 0-260,
Weight (KG): 3100, 3300, 4000, 4200, 4900,
Package size LxWxH(CM) ( Host) : 290x181x200, 310x181x200,
295x200x210, 305x200x210, 305x220x210,
(Table 3M) 224x67x155, 245x70x155, 225x70x162, 225x70x162, 225x70x162,
Tips: Product parameters and pictures are for reference only, please refer to the actual!
